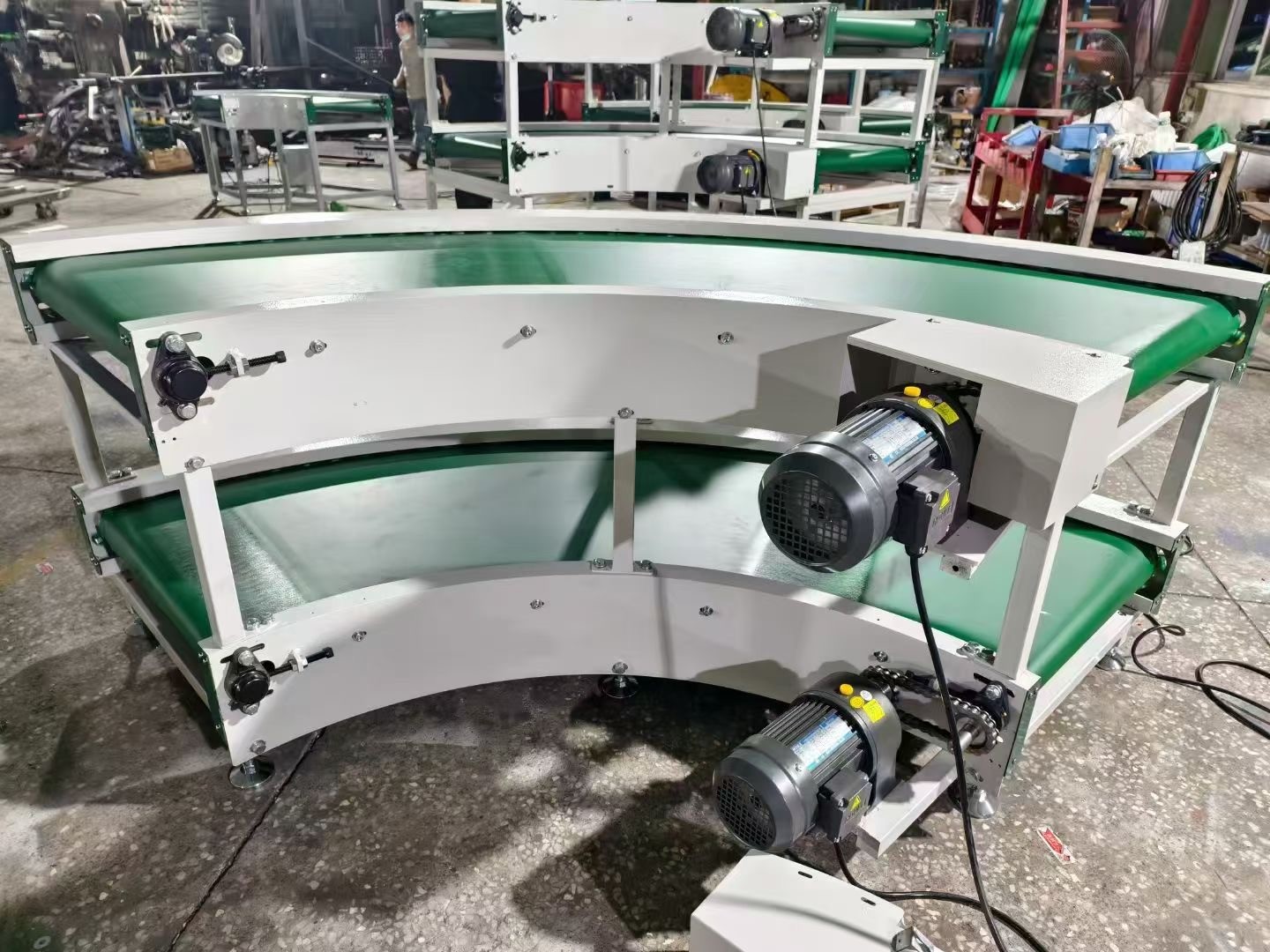

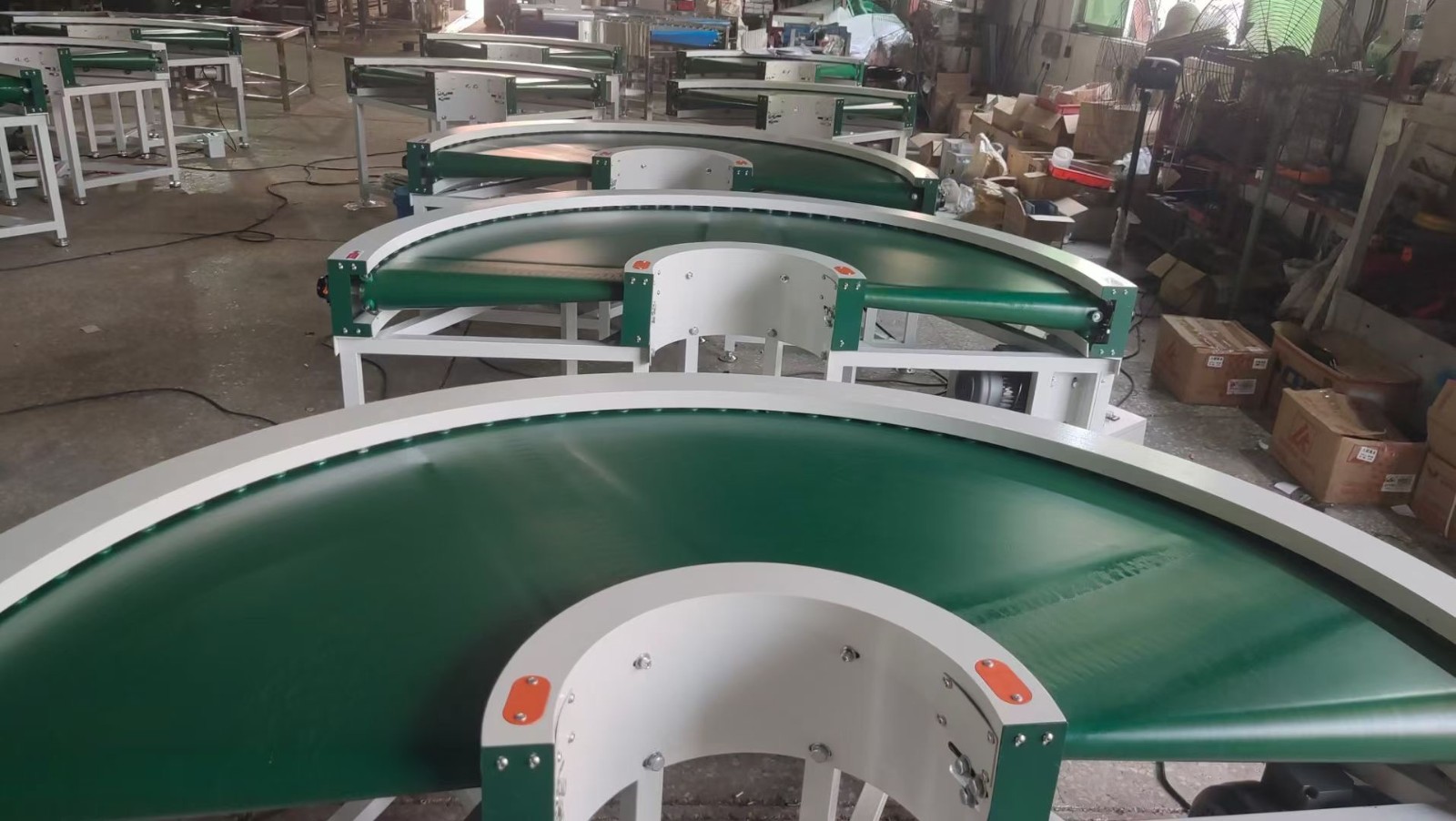

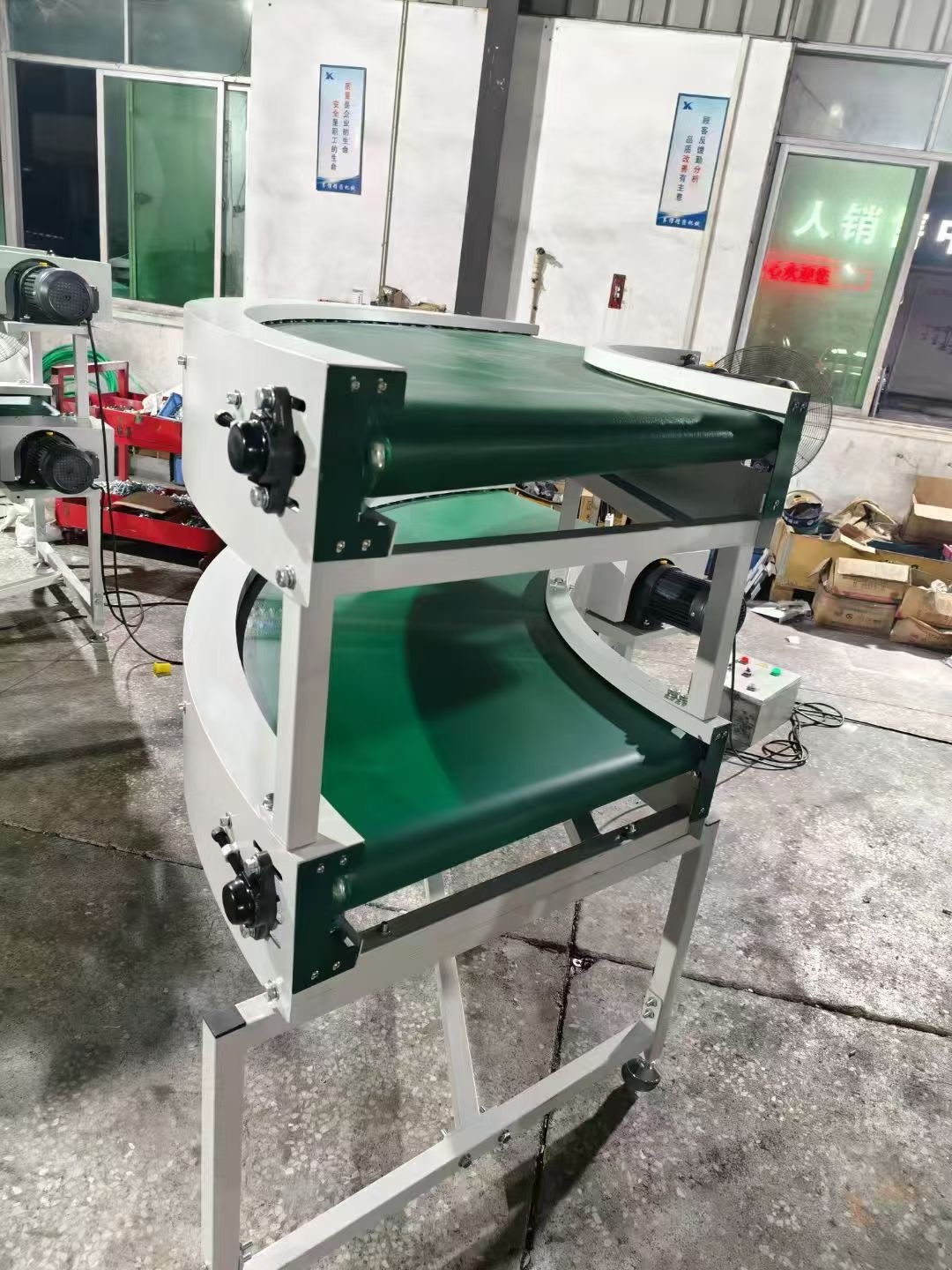

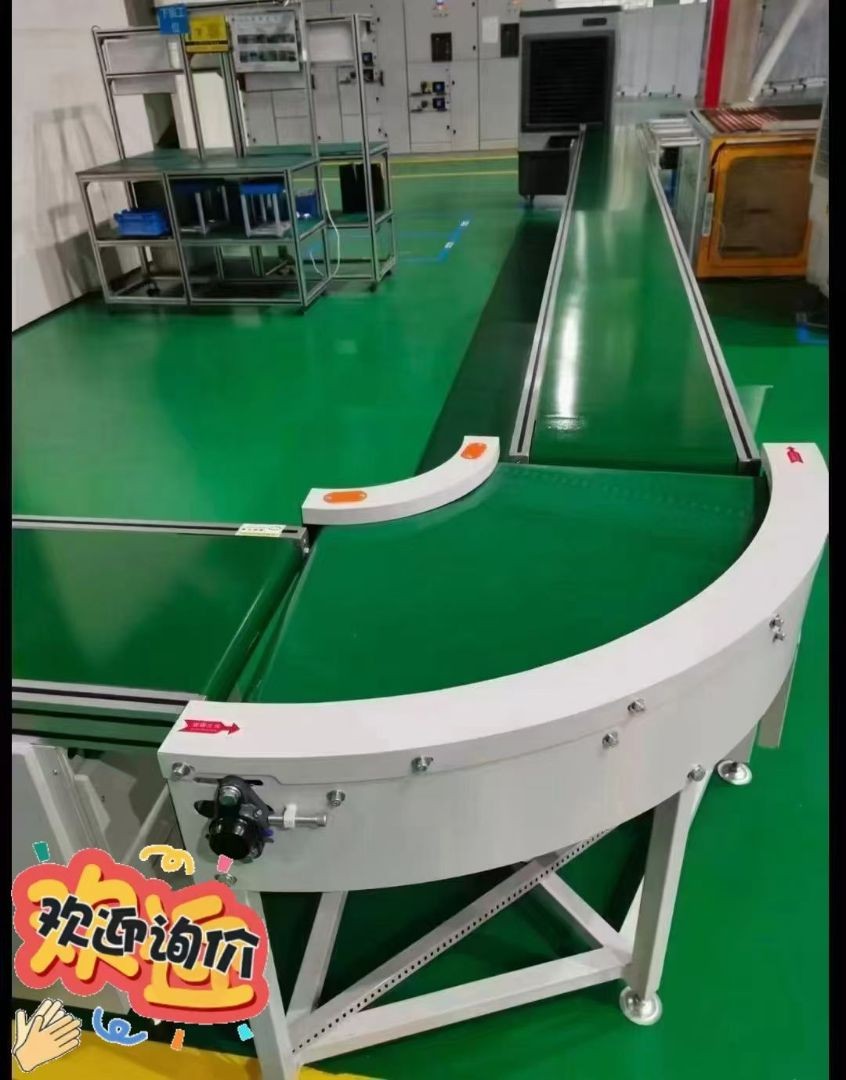

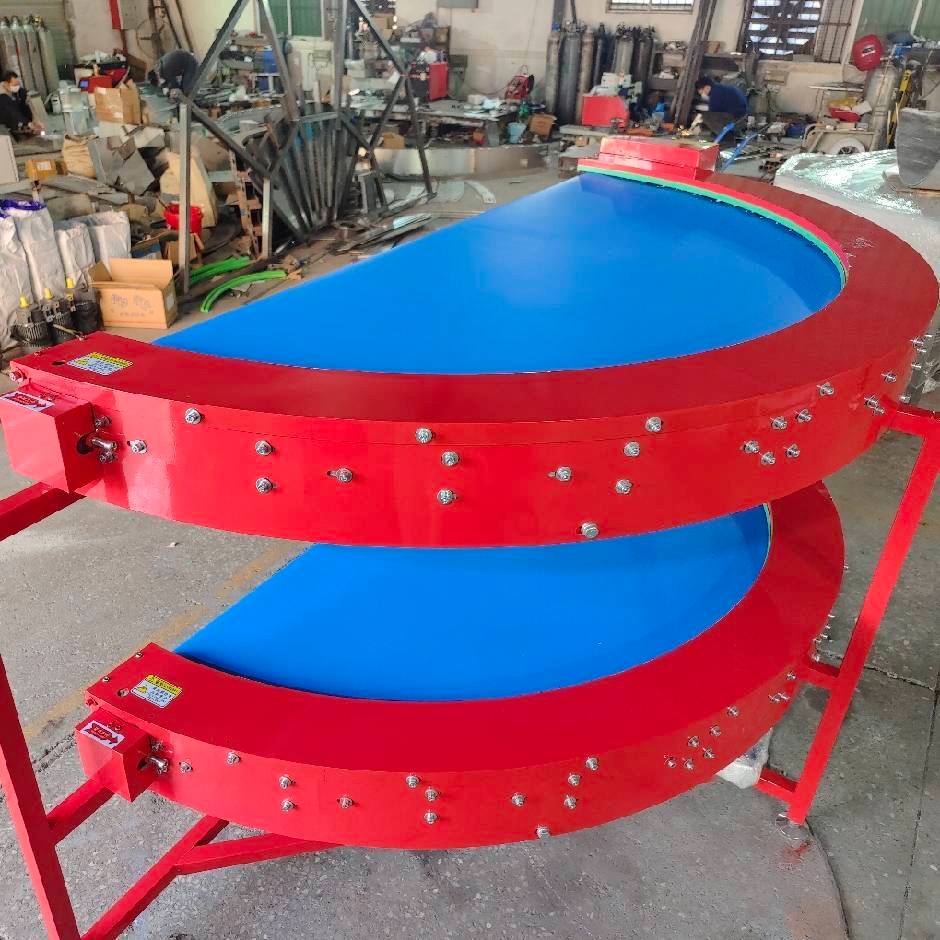

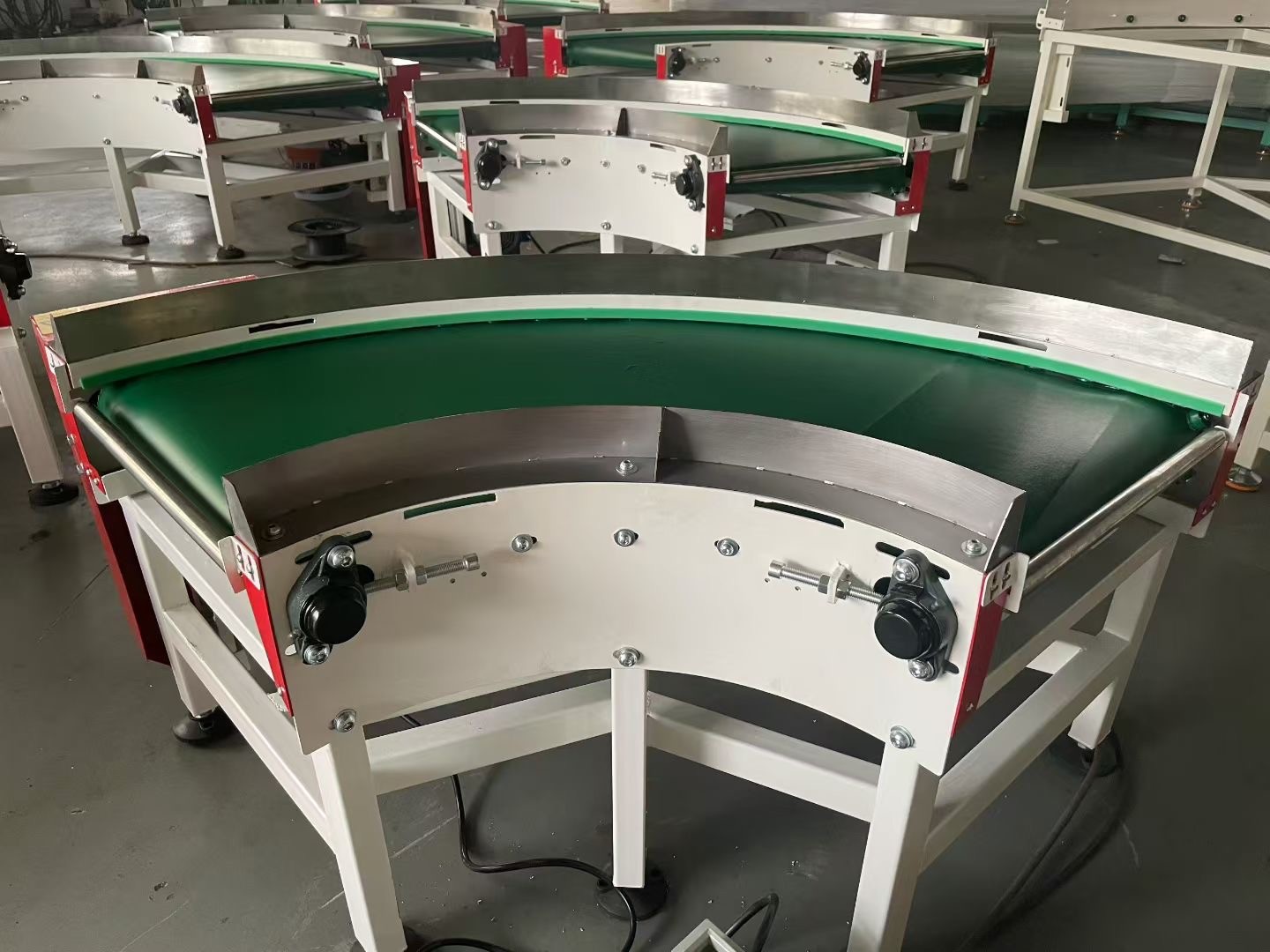

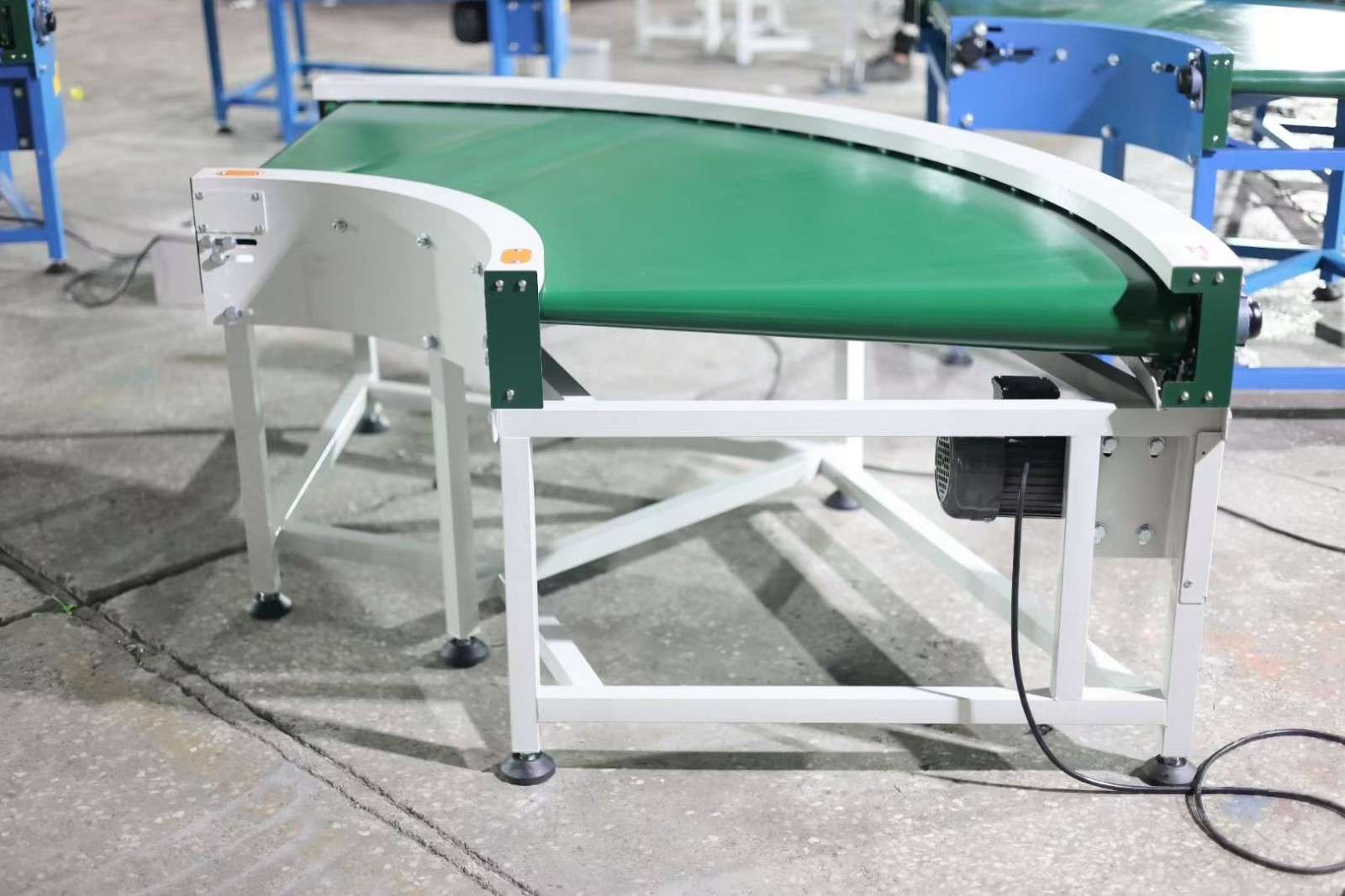

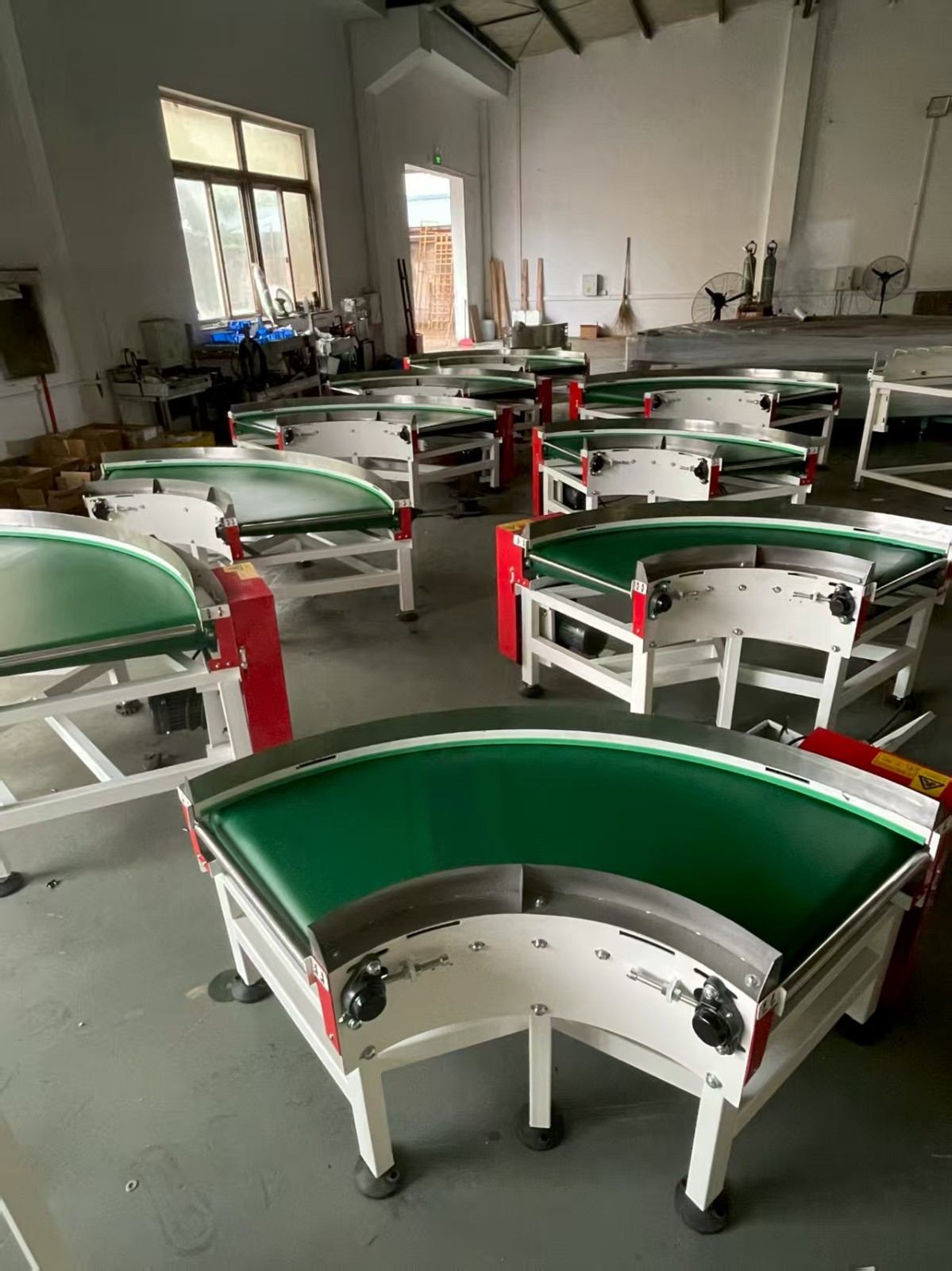

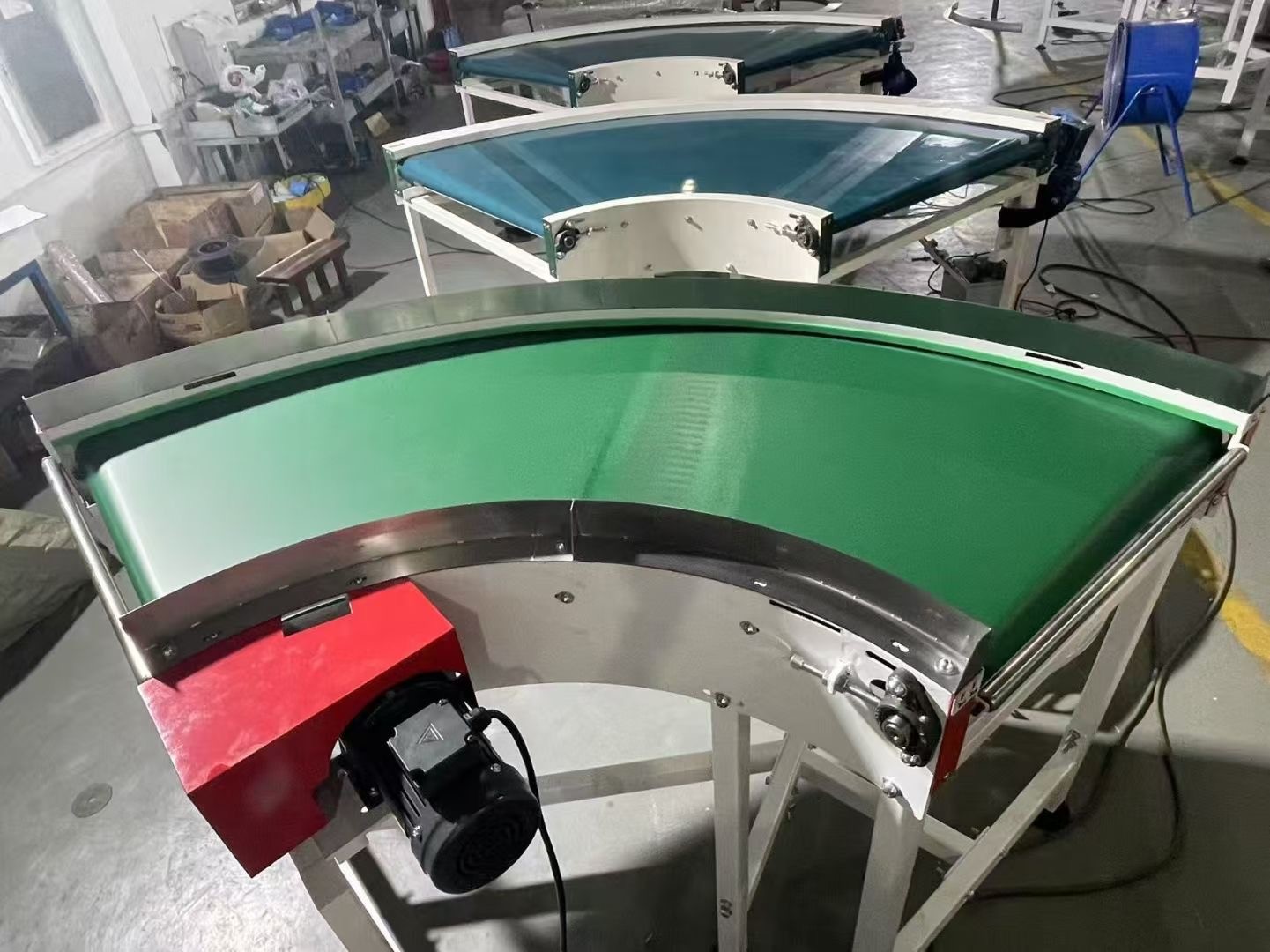

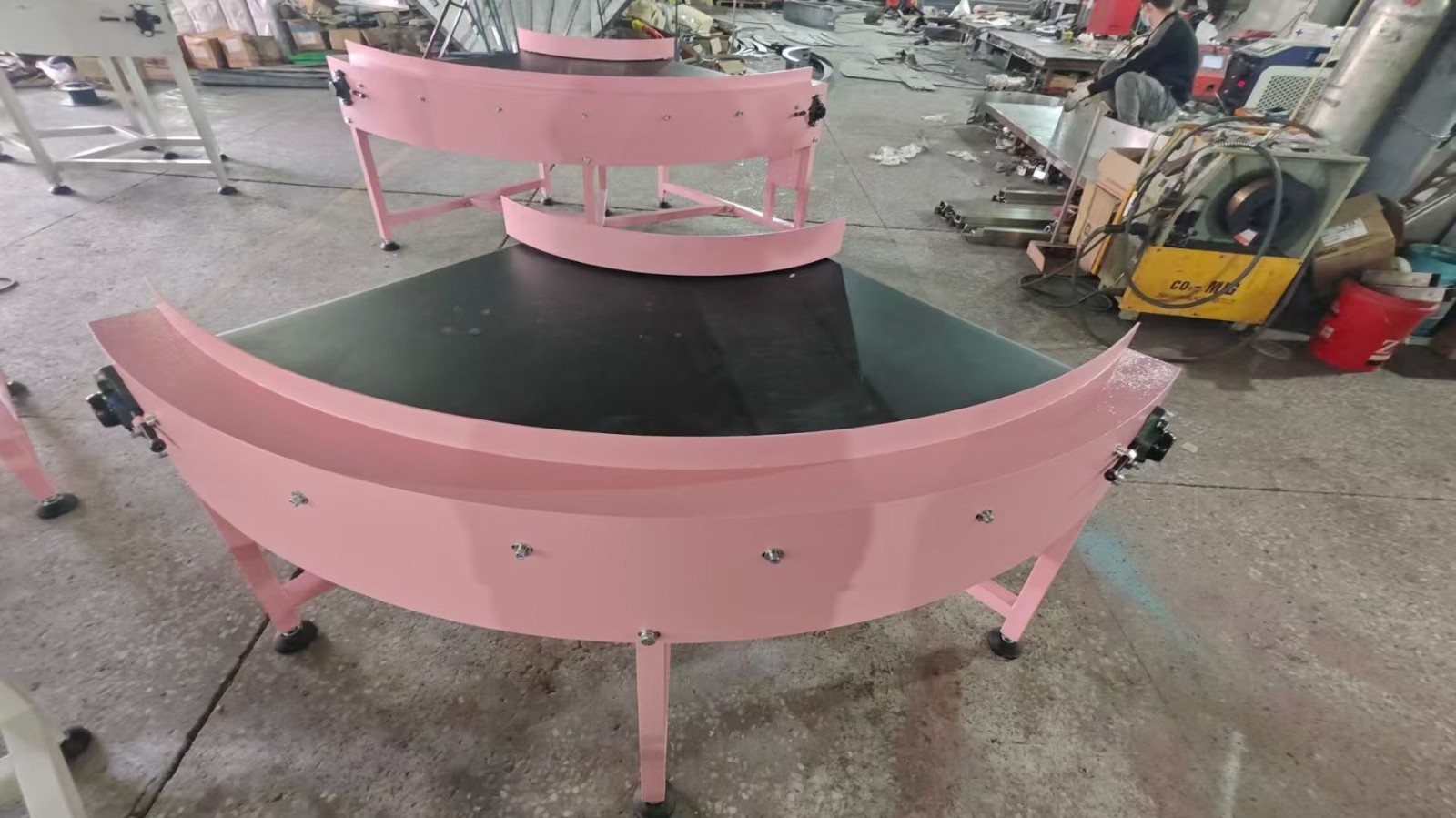

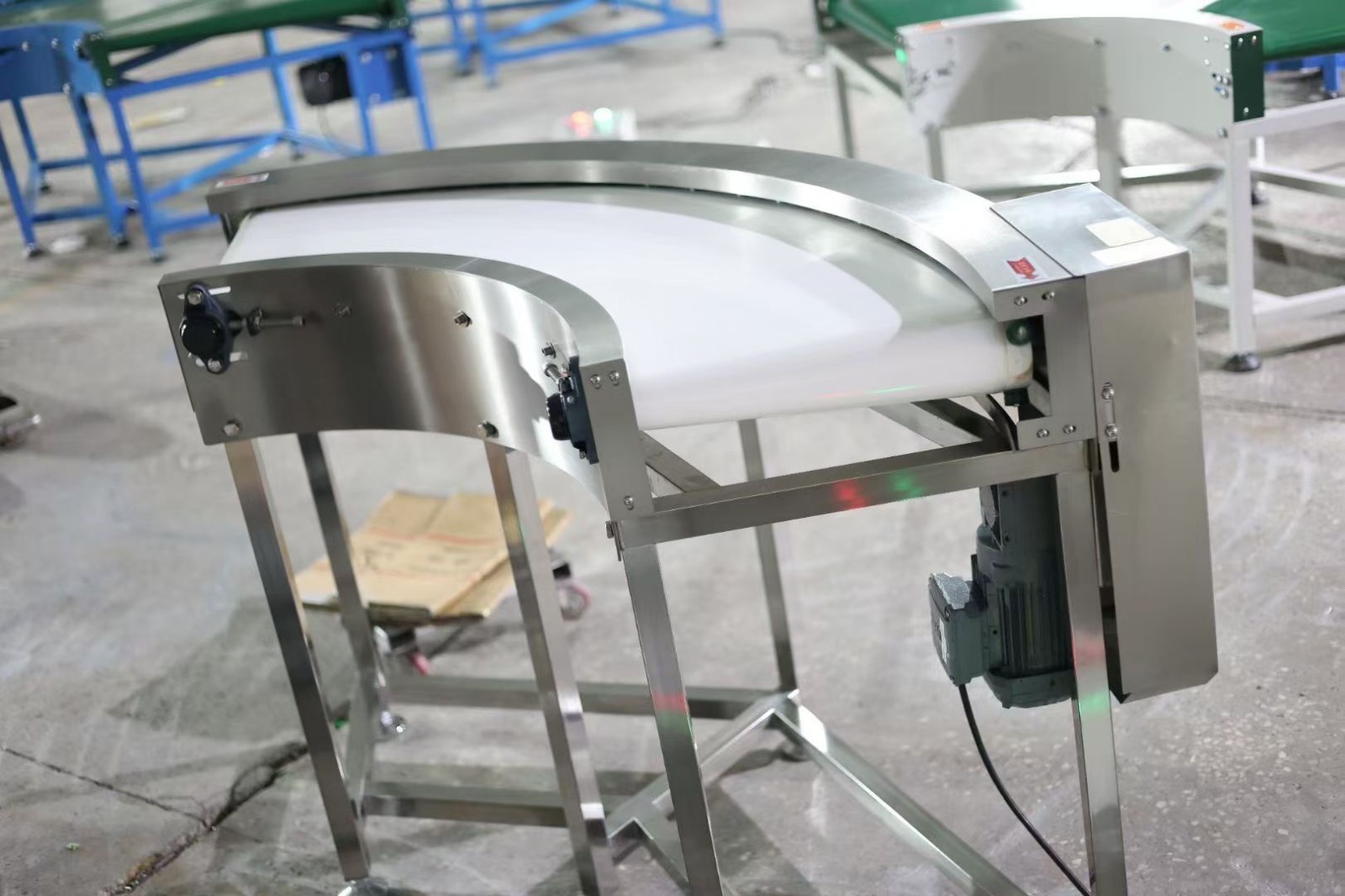

Hairise Curved PU & PVC Belt Conveyor

1. Product Overview

The Hairise Curved PU & PVC Belt Conveyor is specially designed for smooth product conveying in limited spaces where straight conveyors cannot meet layout requirements. With a flexible curved structure, stable running performance, and high-quality PU/PVC belt materials, this conveyor enables efficient 90° and 180° turning in various production lines.

It is widely used in food processing, bakery, snacks, fruits & vegetables, packaging, pharmaceuticals, beverages, and logistics industries.

2. Key Features

• Smooth & Stable Turning
  Designed to deliver precise 90° or 180° conveying without product fall-off.

• High-Quality PU/PVC Belts

  • Food-grade options available

  • Wear-resistant, oil-resistant, and anti-slip

  • Suitable for dry and wet environments

• Flexible Layout
  Ideal for production lines with limited space or irregular workshop structures.

• High Strength Structure
  Heavy-duty steel or aluminum frame ensures long service life and high load capacity.

• Low Noise & High Efficiency
  Optimized belt tension system and rollers reduce vibration and noise.

• Easy Maintenance
  Belts can be quickly cleaned, replaced, or adjusted.

3. Applications

Hairise Curved Belt Conveyors are widely used in:

• Food Industry: bread, buns, biscuits, snacks, frozen food

• Beverage & Bottling: PET bottles, cans, cartons

• Packaging Lines: lightweight boxes, bags, trays, cartons

• Fruit & Vegetable Processing: sorting, packaging areas

• Pharmaceutical & Cosmetics: bottles, pouches, medicine boxes

• Logistics & Warehousing: parcel sorting, e-commerce hubs

• Daily Chemical Products: detergent, personal care packaging

4. Technical Specifications

5. Product Structure

Hairise curved conveyor consists of:

• PU or PVC belt

• Steel/Aluminum frame

• Roller or friction-driven mechanism

• Tension adjustment unit

• Side guards (optional)

• Legs with height adjustment

• Safety cover (optional)

6. Advantages of Hairise Curved Belt Conveyor

• Accurate tracking: advanced guiding system prevents belt deviation

• Clean & hygienic: suitable for food production environments

• Space-saving layout: enables compact factory designs

• Safe for product transport: gentle conveying for fragile goods

• Customizable: direction, radius, belt style, width, height, speed

7. Belt Options

PU Belt

• Food-grade

• Suitable for direct food contact

• Anti-hydrolysis, anti-oil, easy to clean

PVC Belt

• Economical and durable

• Good for packaging and logistics

• Optional textured or anti-slip surface
