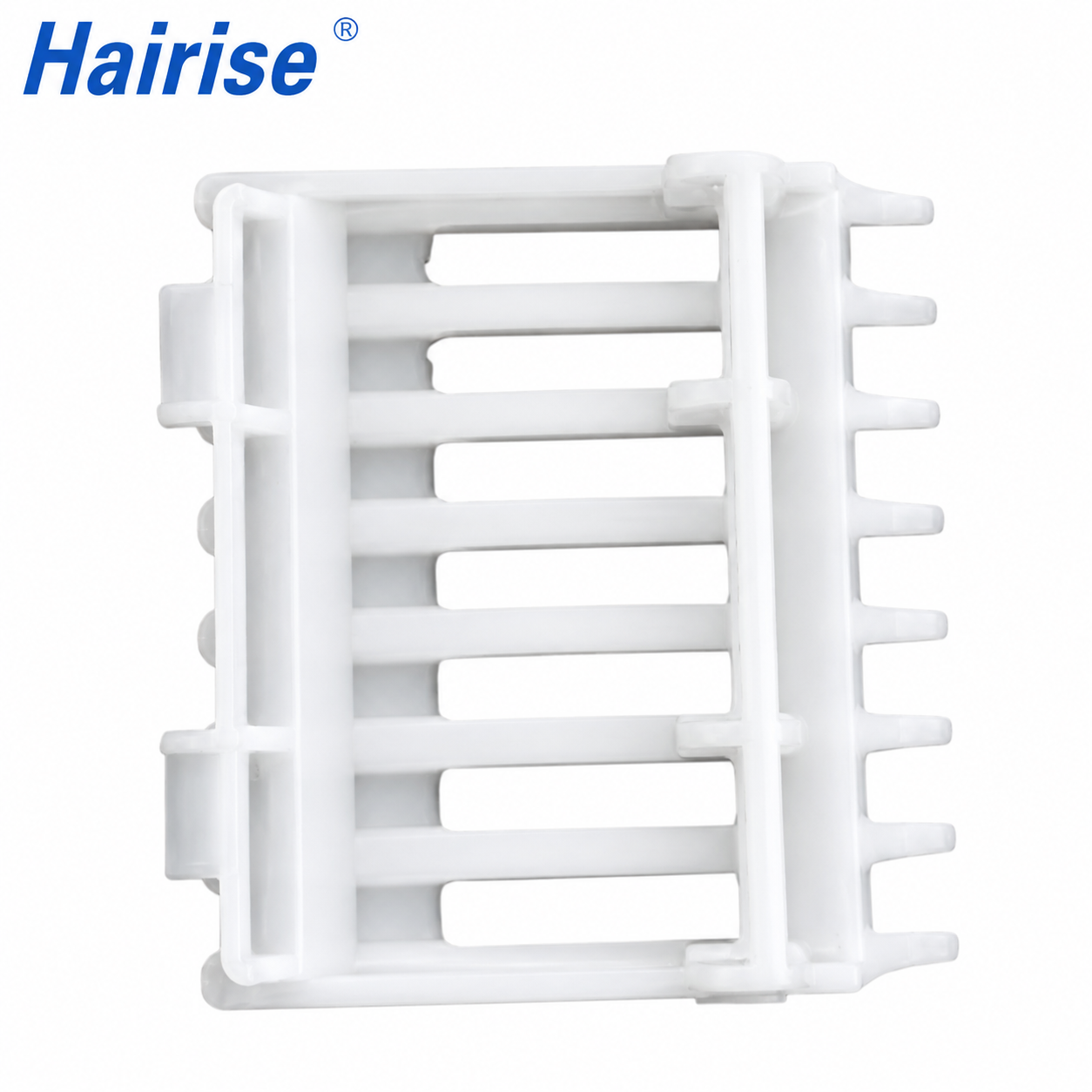

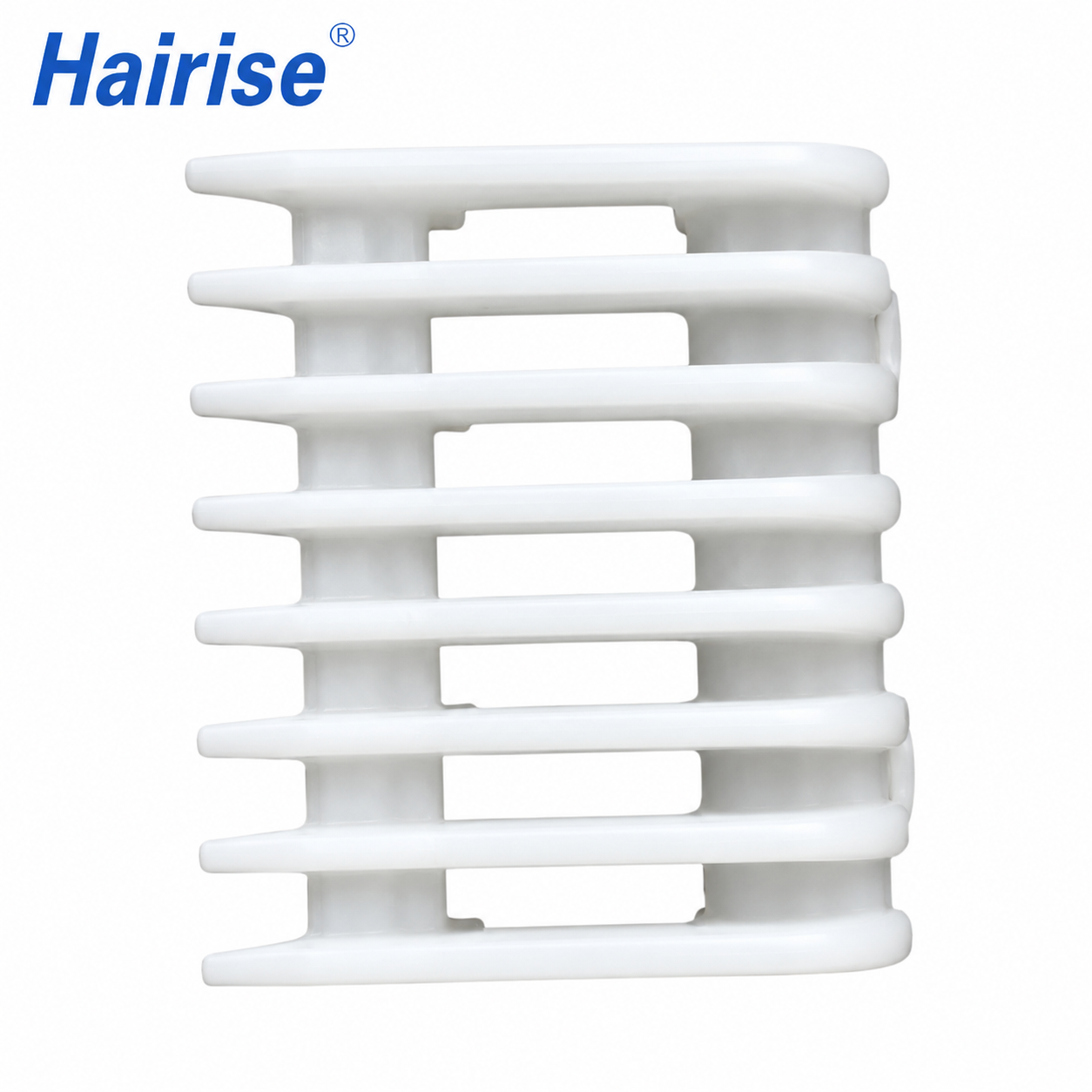

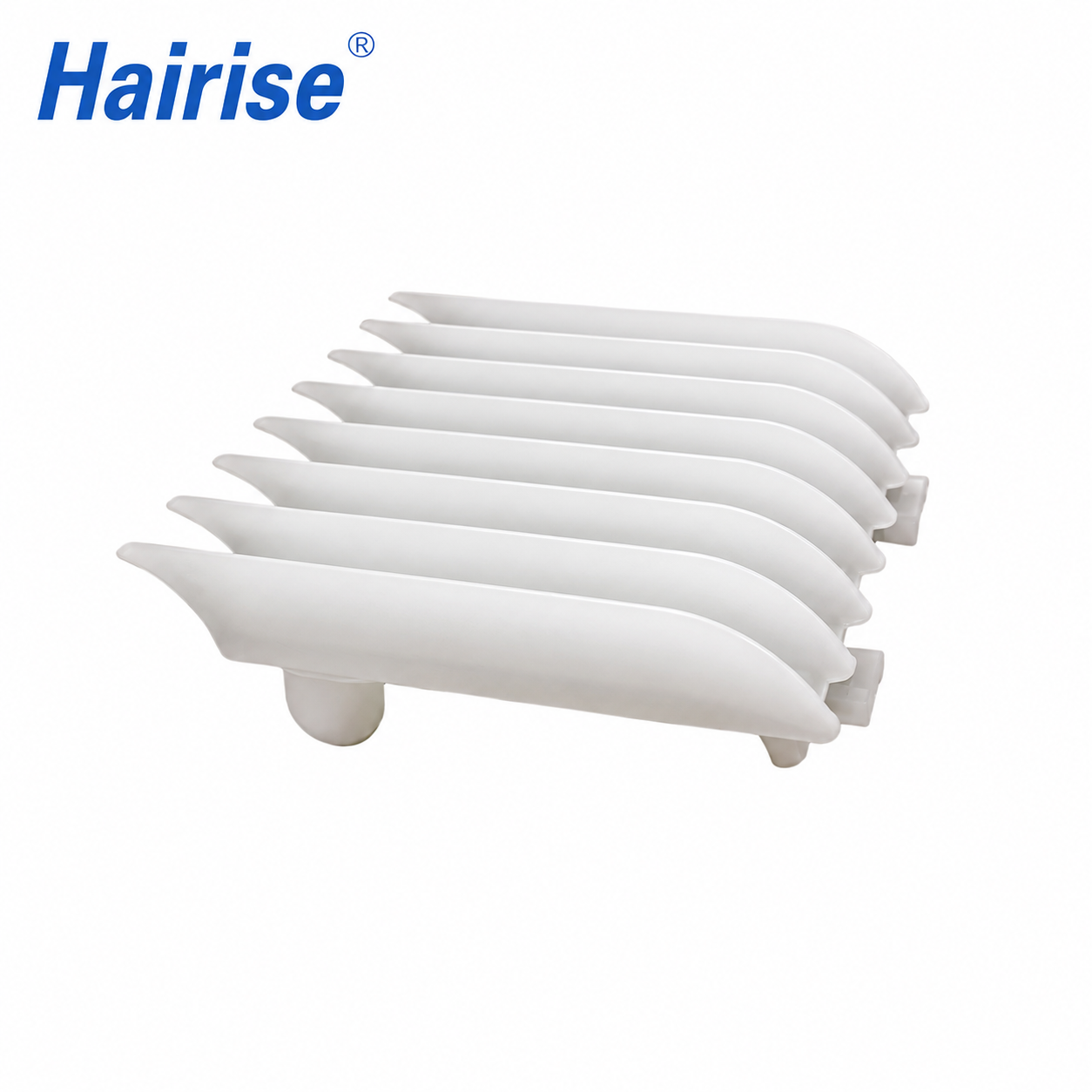

What Is a Comb Transfer Plate?

A comb transfer plate, also known as a finger transfer plate or conveyor transition plate, is installed at the infeed or discharge end of a conveyor. It bridges the space between two conveyor sections and provides additional support for products as they pass through the transfer area.

The fingers of the plate extend between the ribs of a compatible raised-rib modular belt. This design reduces the open transfer gap and helps prevent bottles, cans, cartons, trays and packaged products from tipping, catching or becoming damaged.

How Does a Comb Transfer Plate Work?

When a raised-rib modular belt travels around the conveyor sprocket, the fingers of the comb plate fit between the belt ribs. The upper surface of the plate supports the product while it moves from the modular belt to another conveyor or stationary surface.

This creates a more continuous conveying surface at the transfer point, helping products move smoothly through the production line while reducing product tipping, conveyor jams and transfer-related damage.

Key Features of the Hairise Comb Transfer Plate

Smooth Product Transfer

The comb-shaped edge bridges the conveyor gap and helps products move continuously between different conveyor sections.

Improved Product Stability

The transfer plate provides additional support for bottles, cans, cartons, containers and other products that may become unstable at conveyor transition points.

Wear-Resistant Material

High-quality POM engineering plastic offers good mechanical strength, low friction and reliable wear resistance for continuous conveyor operation.

Precision Finger Design

The finger spacing is designed to match the structure of compatible raised-rib modular belts, providing accurate engagement and stable product transfer.

Easy Installation and Replacement

The modular design allows individual comb plate sections to be installed, maintained or replaced conveniently, helping reduce conveyor downtime.

Corrosion-Resistant Construction

Unlike metal transition components, the plastic comb plate does not rust and can be used in humid production, cleaning and packaging environments.

Customized Options

Different widths, colors, finger quantities, mounting holes and installation configurations can be provided according to the conveyor design and modular belt series.

Product Specifications

Benefits for Your Conveyor System

• Reduces the open gap between conveyor sections
• Helps prevent products from tipping at transfer points
• Reduces product catching, jamming and damage
• Provides a smooth and stable conveying surface
• Supports continuous production line operation
• Offers good wear resistance and low friction
• Allows convenient maintenance and replacement
• Can be customized for different conveyor layouts

Applications

Hairise plastic comb transfer plates can be used in a wide range of conveyor systems and production lines, including:

• Beverage bottling and canning lines
• Food processing and packaging lines
• Bakery product conveying
• Dairy product handling
• Carton and case conveying
• Tray and container transfer
• Packaging machinery
• Logistics and parcel handling systems
• Manufacturing and assembly lines

How to Select the Correct Comb Transfer Plate

The finger spacing and installation dimensions of the comb plate must match the modular belt and conveyor structure. To help Hairise recommend the correct model, please provide the following information:

1. Modular belt model or belt pitch
2. Conveyor belt width
3. Product dimensions and weight
4. Conveyor operating speed
5. Working temperature
6. Transfer direction
7. Installation drawing or transfer-point photo
8. Required material, color and quantity

Why Choose Hairise?

Hairise is a manufacturer of modular belts, slat top chains, conveyor systems and conveyor accessories. We provide standard products as well as customized conveyor solutions for different industries.

Our comb transfer plates can be supplied together with compatible modular belts, sprockets and conveyor components. This helps customers reduce compatibility problems and simplify conveyor installation and maintenance.

• Factory-direct conveyor component supply
• Standard and customized specifications
• Compatible modular belts and sprockets available
• Technical selection and installation support
• Complete conveyor system solutions

Frequently Asked Questions

What is a comb transfer plate used for?

It is used to bridge the gap at a conveyor transfer point and support products as they move between conveyor sections.

Which conveyor belts can use a comb transfer plate?

Comb transfer plates are mainly used with compatible raised-rib plastic modular belts. The finger spacing must match the ribs and pitch of the belt.

Can Hairise customize the comb plate size?

Yes. Hairise can provide different widths, colors, finger quantities, mounting holes and installation configurations according to the conveyor design.

Is food-grade material available?

Food-contact-grade material is available for suitable applications. Material and certification requirements should be confirmed before ordering.

How do I choose the correct model?

Please send us your modular belt model, conveyor width, product information and installation drawing. Our team will check compatibility and recommend a suitable comb transfer plate.

Can the comb plate be supplied with other conveyor parts?

Yes. Hairise can supply compatible modular belts, sprockets, guide rails, wear strips and other conveyor accessories.

Request a Comb Transfer Plate Solution

Looking for a comb transfer plate that matches your modular belt conveyor? Send us your belt model, conveyor width, product information and installation drawing. Hairise will help you select a suitable transfer solution for your production line.
